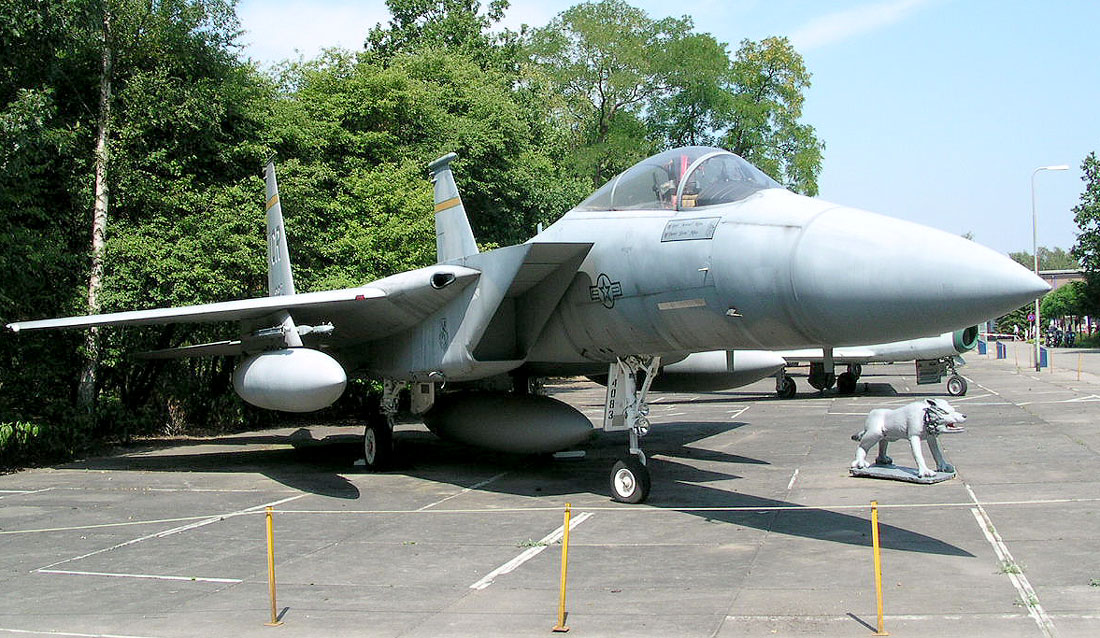

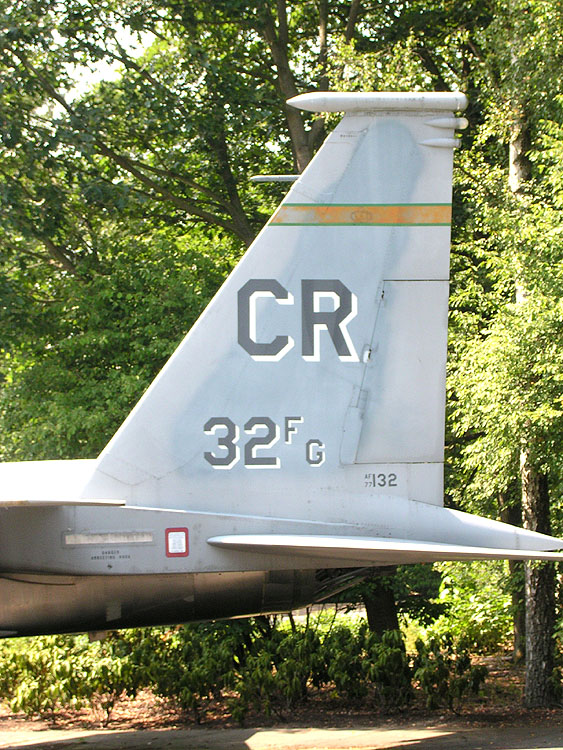

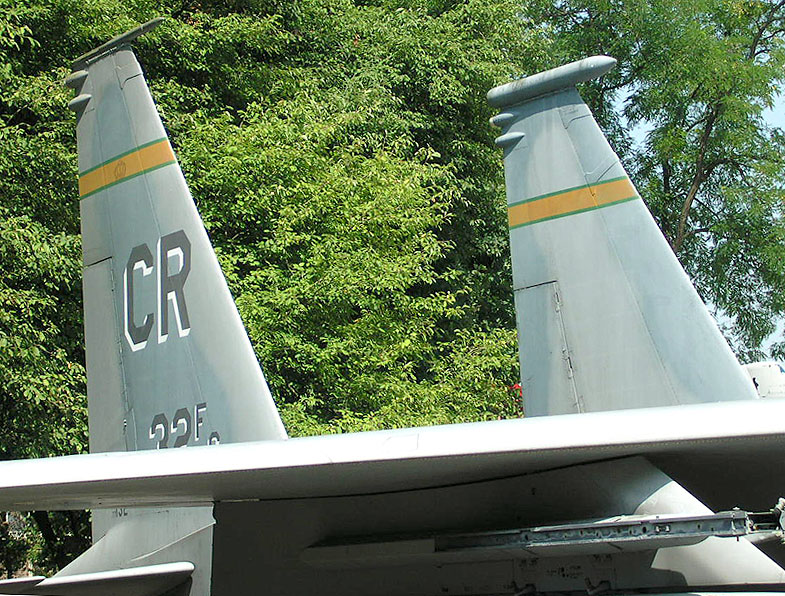

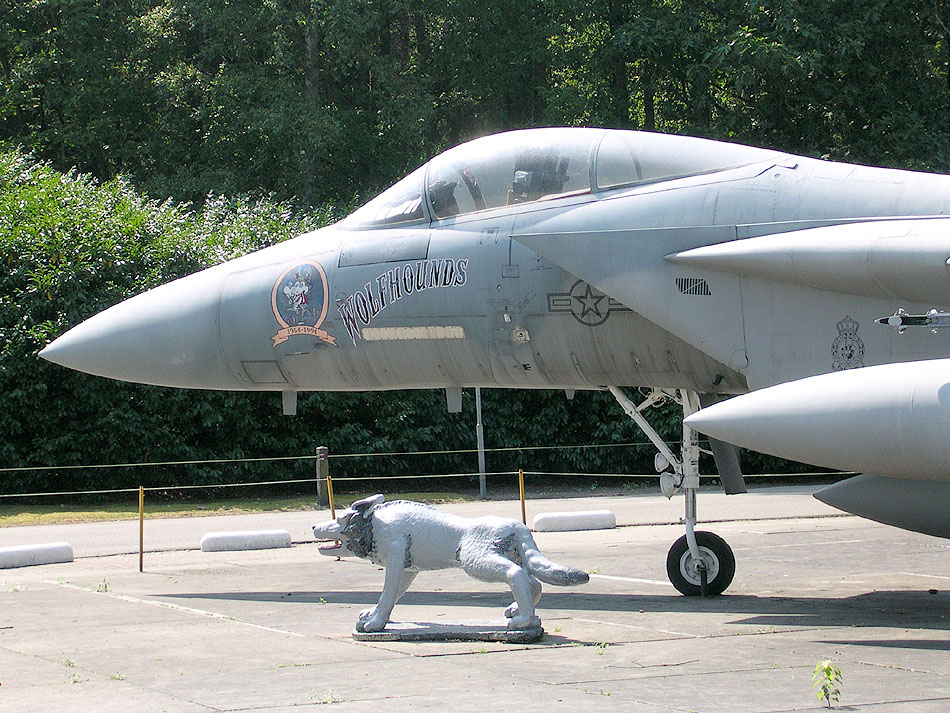

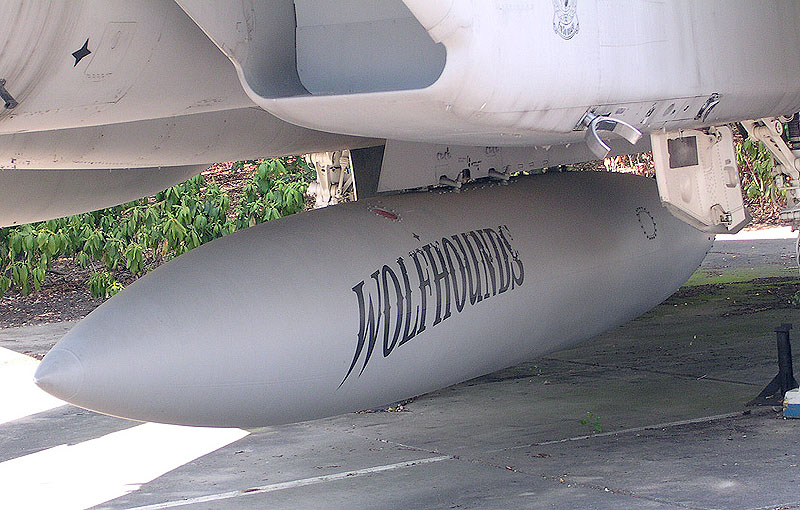

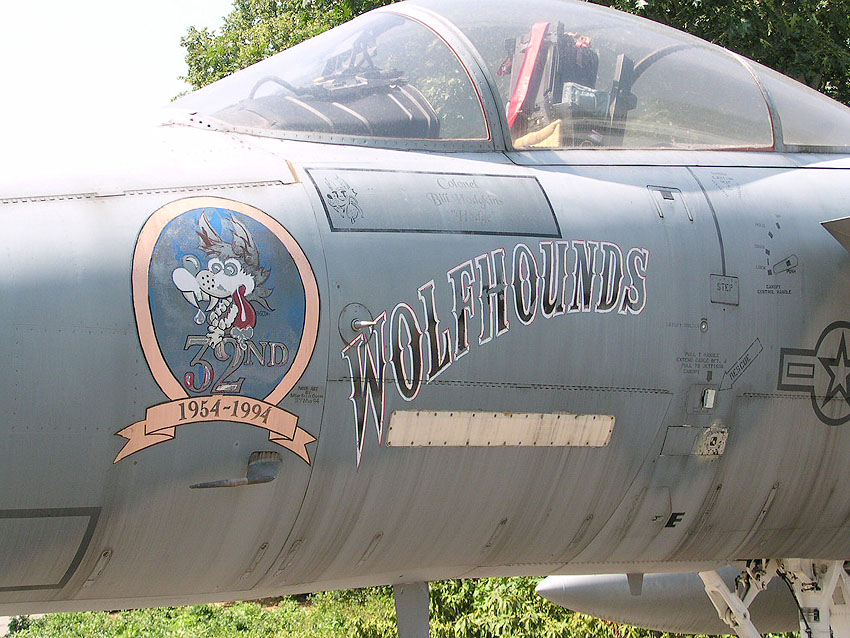

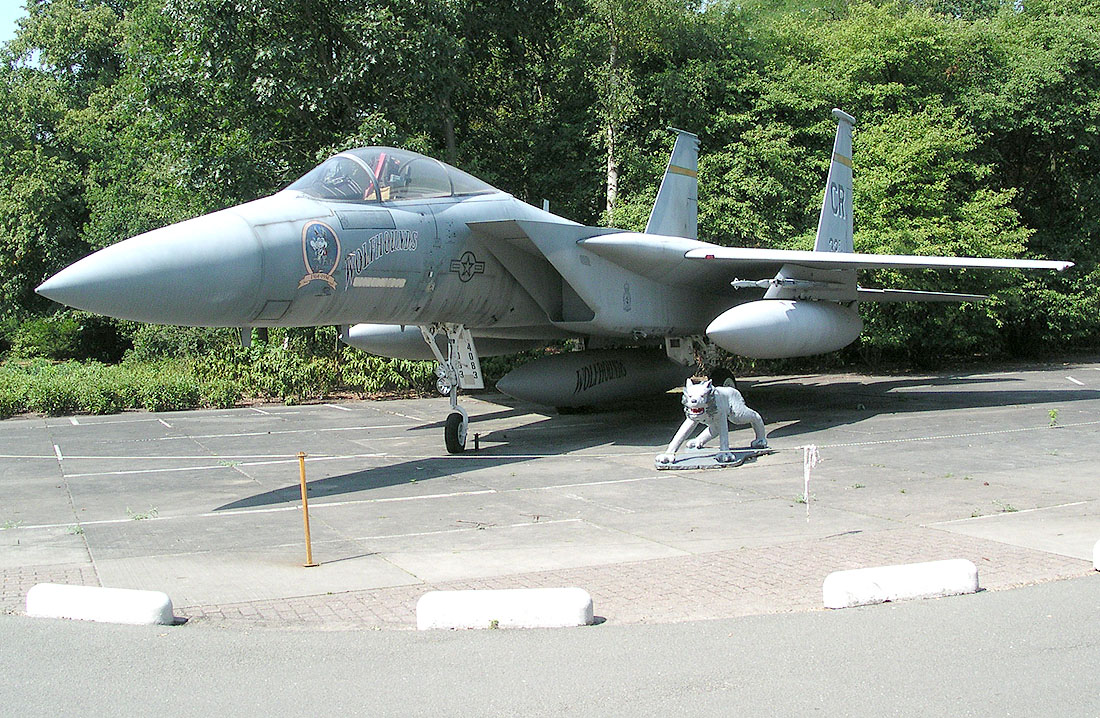

These photographs were taken in Aug 2003 at the Militaire Luchtvaart Museum in Soesterberg, The Netherlands. It's an a/c type that is very welcovered elsewhere so this walkaround consists of just a few images. Moreover, the day I took the pictures the temperature soared to 36 degrees centigrade, making this Scandinavian quite unwell ...


The F-15 Eagle is an all-weather, extremely maneuverable, tactical fighter designed to gain and maintain air superiority in aerial combat. The Eagle's air superiority is achieved through a mixture of maneuverability and acceleration, range, weapons and avionics. The F-15 has electronic systems and weaponry to detect, acquire, track and attack enemy aircraft while operating in friendly or enemy-controlled airspace. Its weapons and flight control systems are designed so one person can safely and effectively perform air-to-air combat. It can penetrate enemy defense and outperform and outfight current or projected enemy aircraft.

The F-15's superior maneuverability and acceleration are achieved through high engine thrust-to-weight ratio and low wing loading. Low wing-loading (the ratio of aircraft weight to its wing area) is a vital factor in maneuverability and, combined with the high thrust-to-weight ratio, enables the aircraft to turn tightly without losing airspeed (Military Analysis Network).
