X-24 A/B


The following images of the two X-24 variants were kindly provided
by Howard Mason.

The Martin X-24 was an experimental US aircraft developed from a joint USAF-NASA program named PILOT (1963-1975). It was designed and built to test lifting body concepts, experimenting with the concept of unpowered reentry and landing, later used by the Space Shuttle.

The X-24 was built by the Martin Aircraft Company and flown from Edwards AFB, California. The X-24A was the second development of the program, it followed the HL-10 (1966) and preceded the M2-F3 (1970).

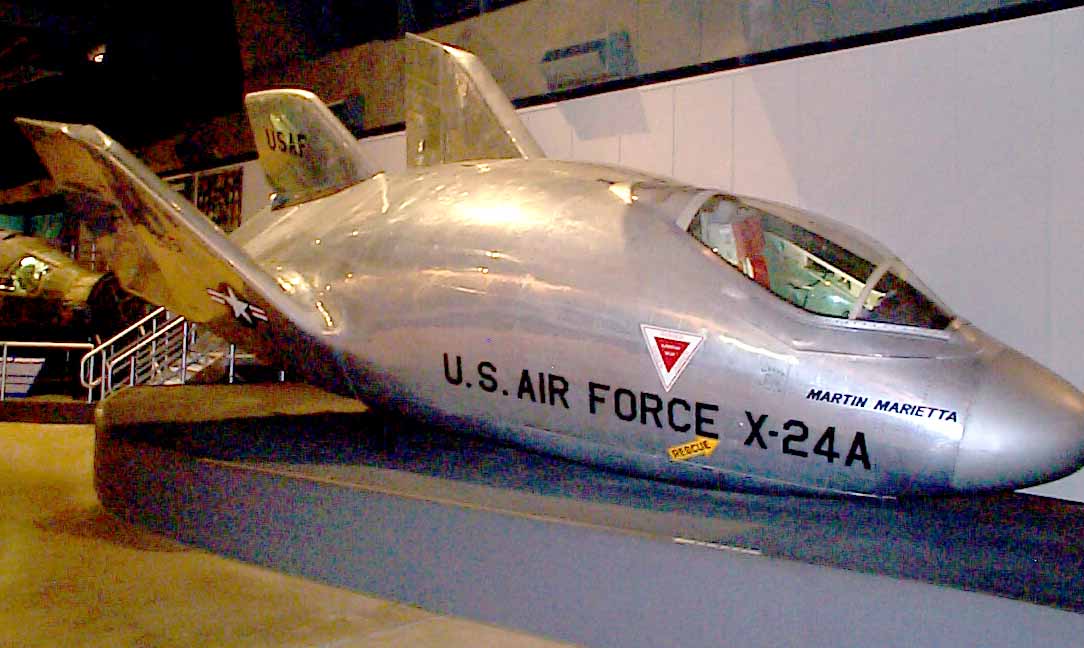

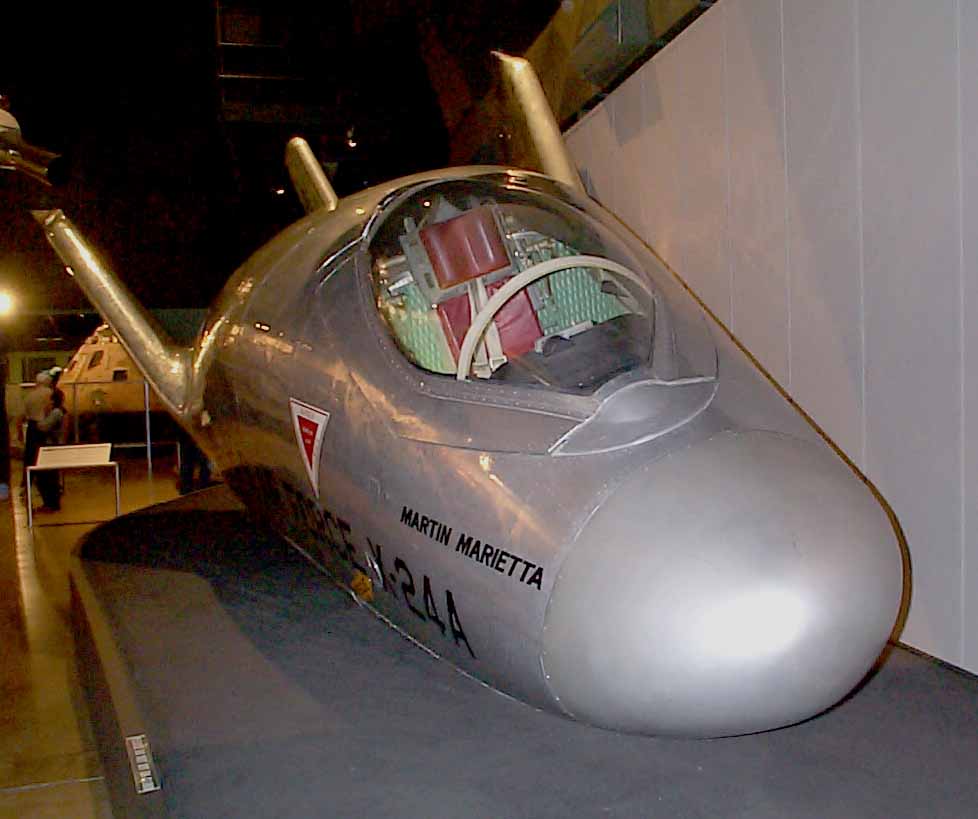

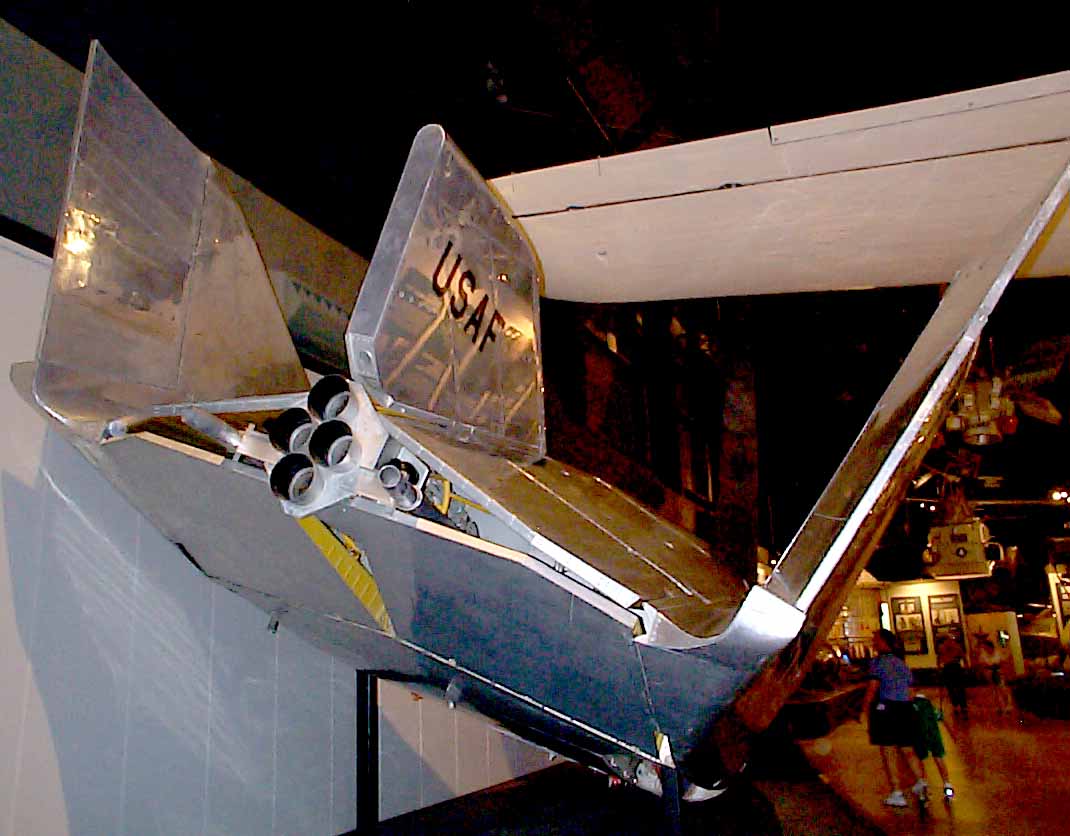

The X-24A was a fat, short teardrop shape with vertical fins for control. It made its first, unpowered, glide flight was on April 17, 1969 and its first powered flight on March 19, 1970. The craft was taken to aroud 45,000 feet by a modified B-52 and then drop launched, then either glided down or used its rocket engine to ascend to higher altitudes before gliding down. The X-24A was flown 28 times at speeds up to 1,036 mph and altitudes up to 71,400 feet

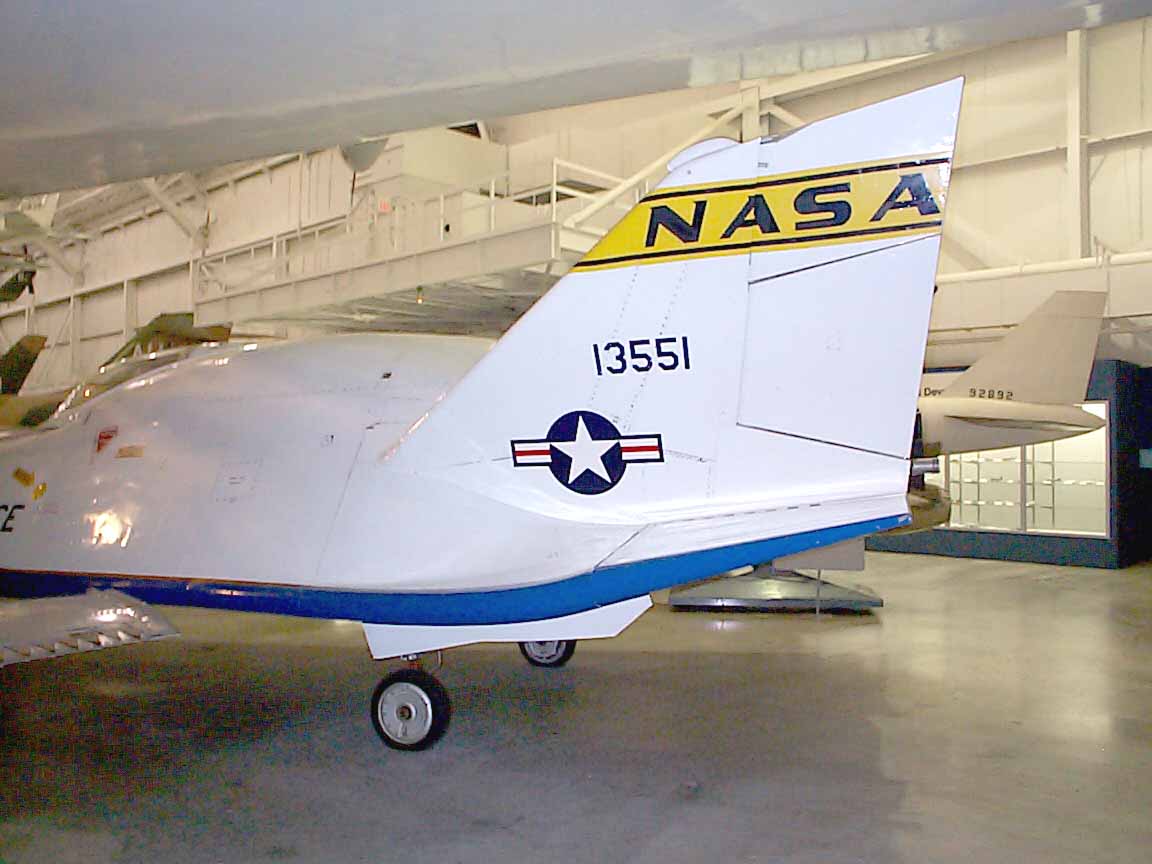

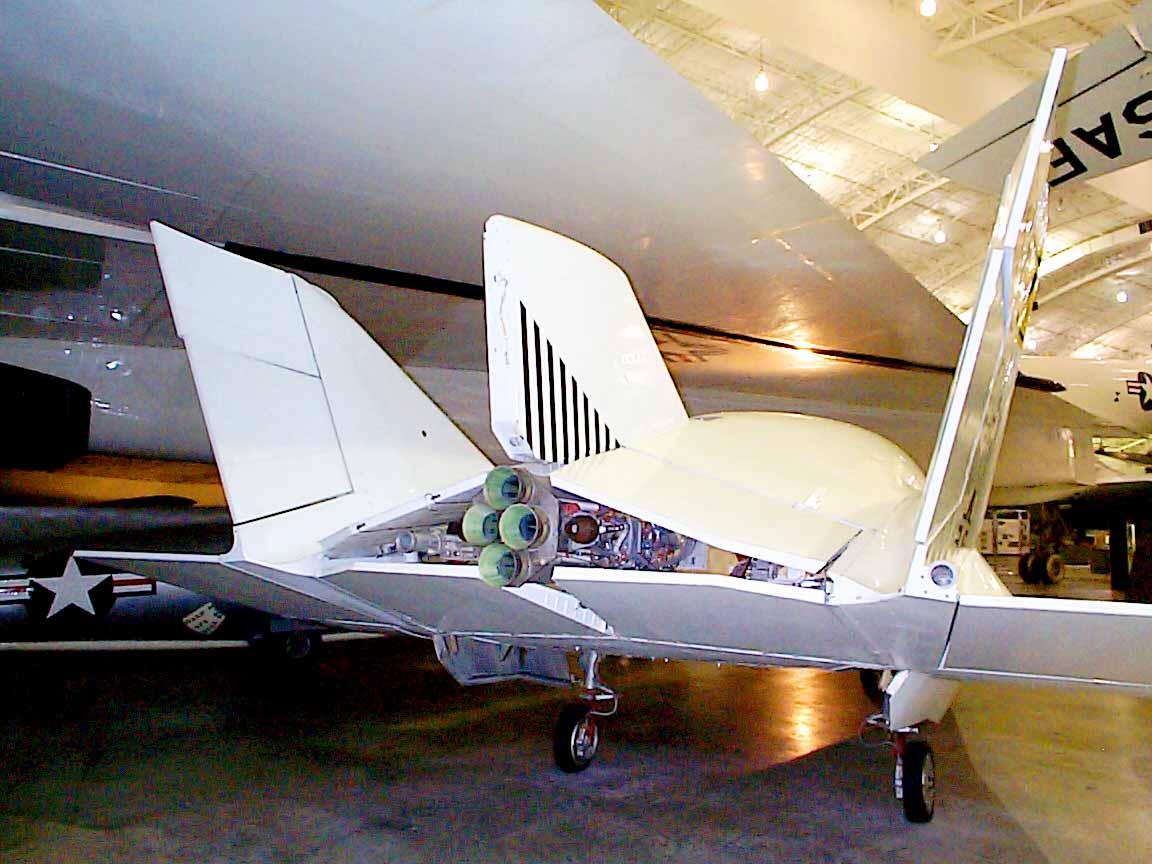

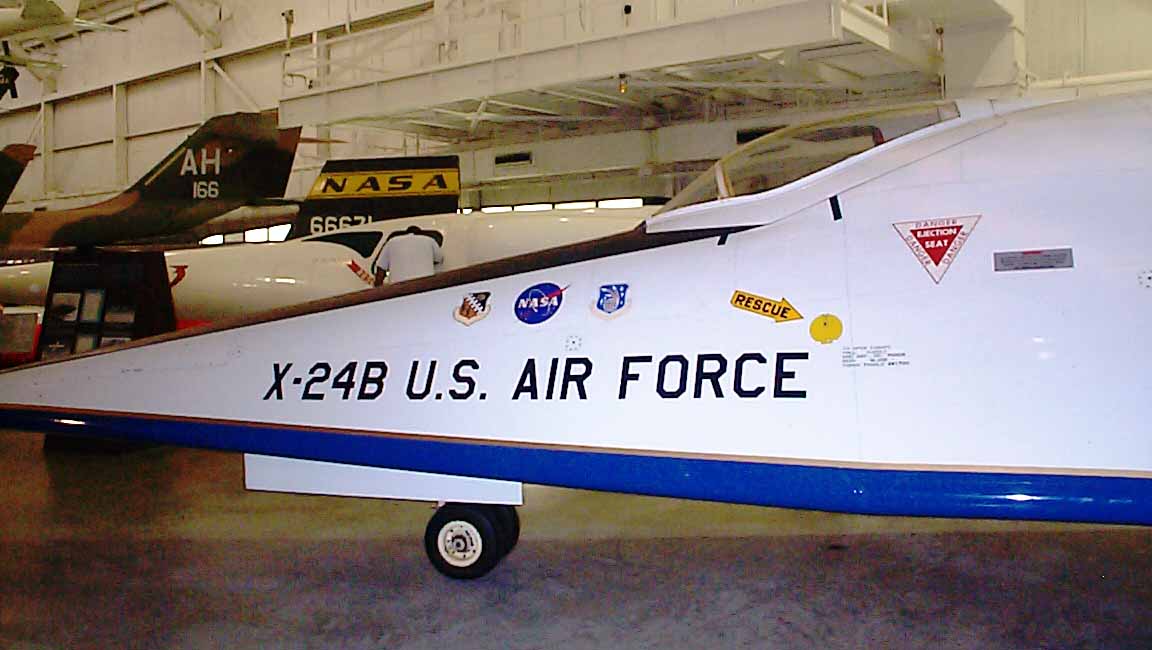

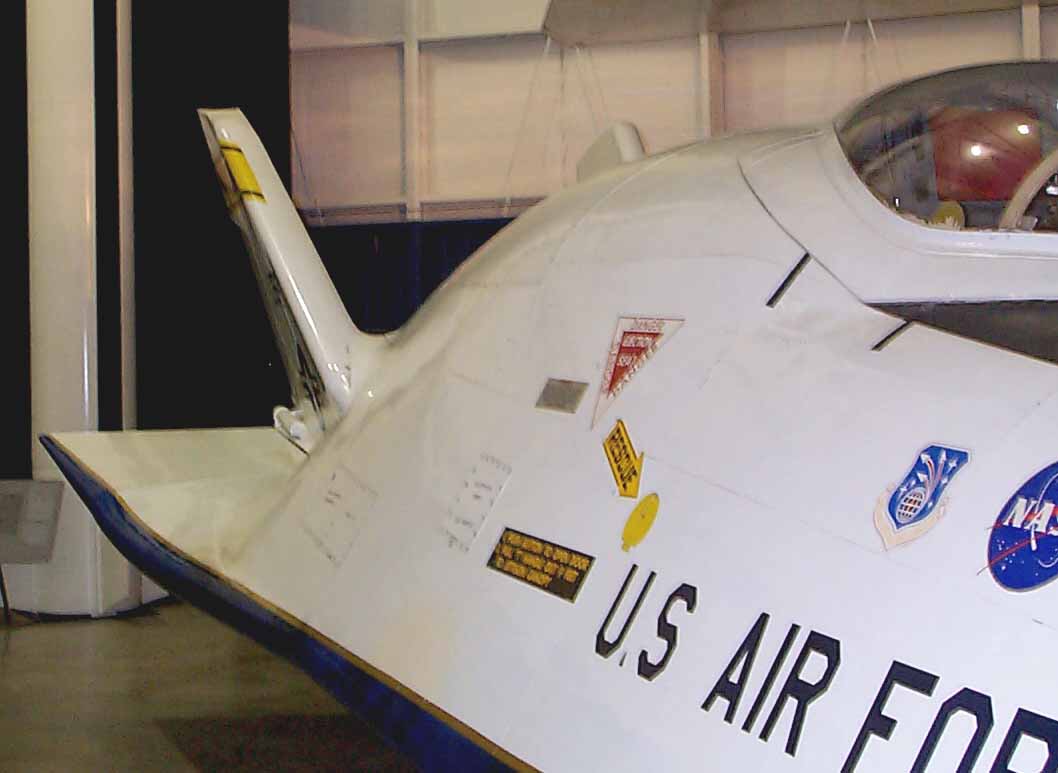

The X-24A was modified into the more stable X-24B with a entirely different shape in 1972 (Source: Wikipedia).
